Wooden door and iron gate Electronic Control Lock Electric Gate Door Lock Support Video Doorphone Intercom System

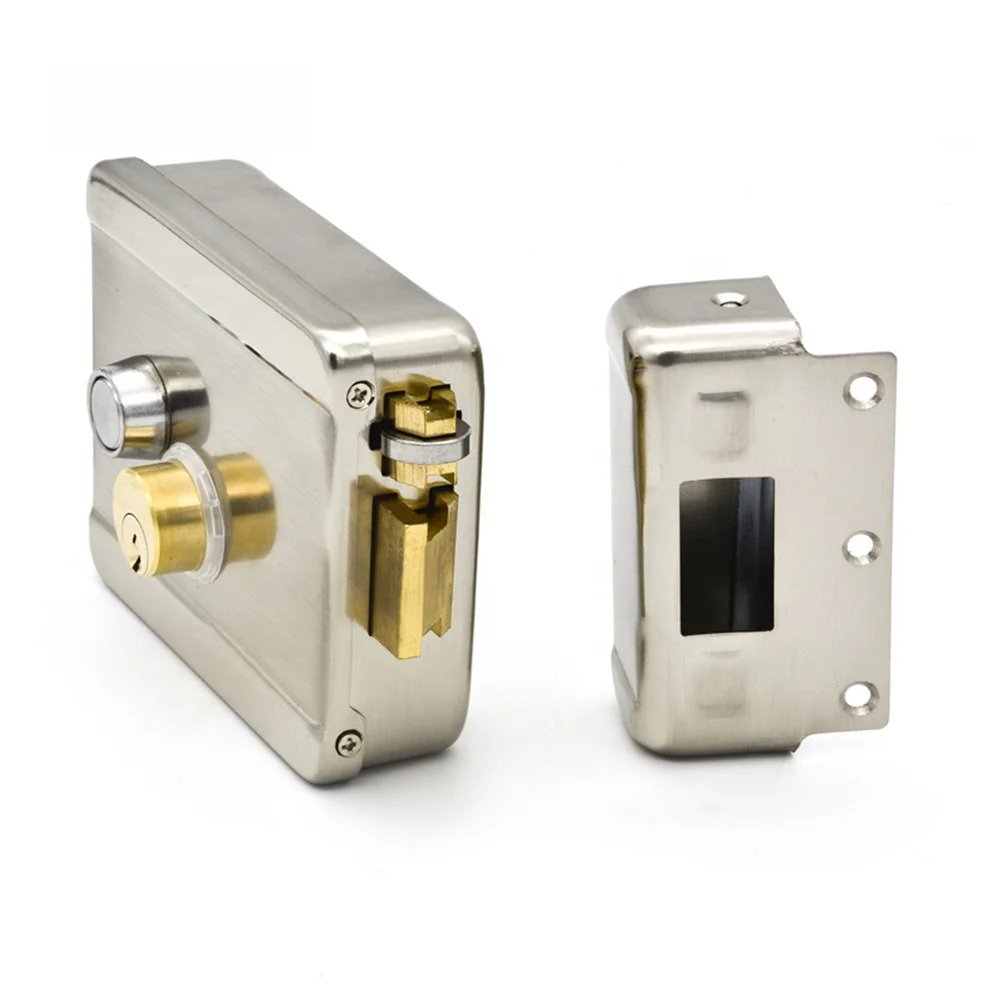

This stainless steel and iron electronic lock fit doors which are 35mm – 55mm thick.

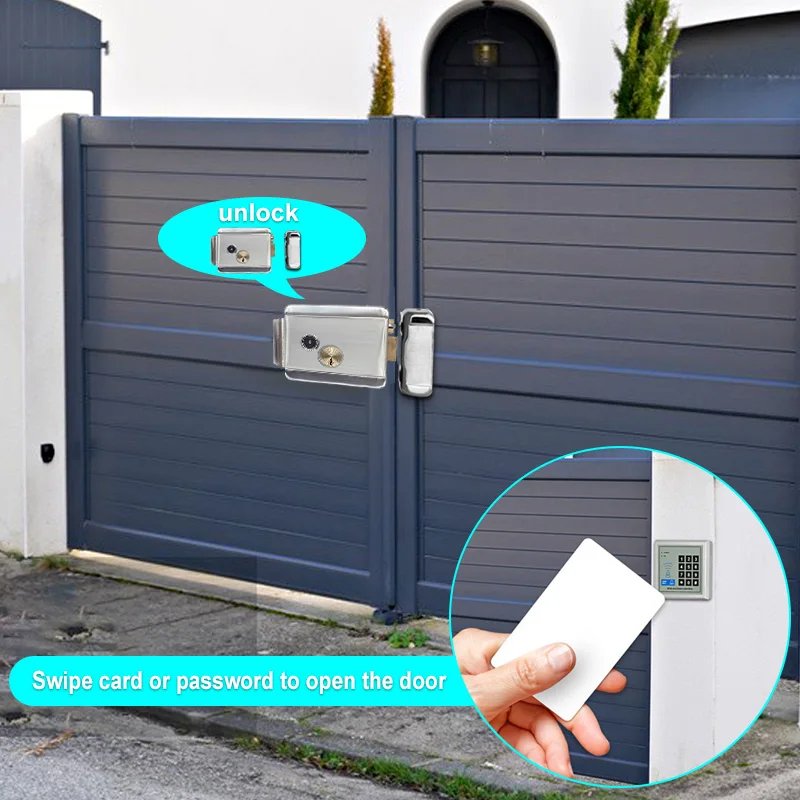

And it can be mounted on left or right swinging doors. It has two wires running from it for electronic access. Besides, it is very easy to install and nearly suitable for all sorts of access control systems and video door systems.

Feature:

Stainless steel or iron construction

Connect via 2-wire to our Apartment Video intercom system

Fits for electrical control, key or hand operation

Can be opened from inside and outside with keys even if no power

Automatically lock when the door is closed

Fit doors 35mm 1-3/8” to 55mm2” thick

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption.

This Door Locks fit different kinds of doors. When the bolt extends out, the door can be locked normally.

Electronic Door Lock

Working voltage:12VDC

Opening Voltage:9 to 18V

Working current:150mA

Material:stainless steel

Dimension:120mmL x 105mmW x 35mmH

Life time:500,000 times

Package

1 x Metal Electronic Door Lock

1 x Door Rim

1 x Lock core

1 x Installation Package

3 x Keys
